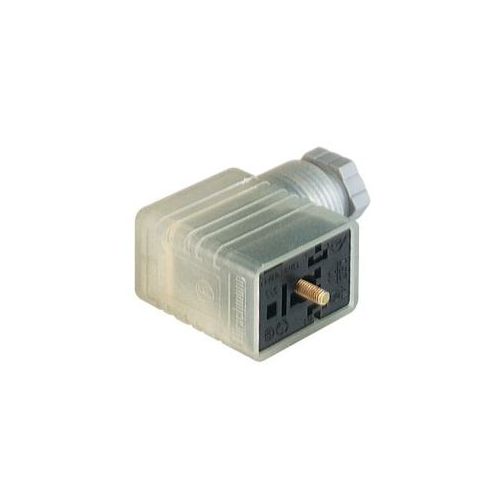

GMNL 209 NJ GB1 LED 24 grau/grey | 933400106 | Connector Form B DIN
Valve Connector with Bridge-type rectifier with protective circuit (varistor) and function indicator (LED) Number of contacts 2+PE
| Complete Electronics Part No. | 933400106 |
|---|---|
| Manufacturers Part No. | 933 400-106 |
| Type: | Cable Socket |
| Voltage: | AC/DC 24 V |
| Number of poles | 2+PE |
| Cable Gland Size: | PG 9 |
| Valve Connector Form | B |
| Termination: | Screw |
| Insert Type: | Bridge Rectifier + Varistor |
| Led Colour: | Red |
| IP Rating: | IP65 |
Description
Valve Connector with Bridge-type rectifier & protective circuit (varistor)
GMNL 209 NJ GB1 LED 24 grau/grey
Valve Connector with Bridge-type rectifier & protective circuit (varistor)
- Function indicator (LED)-
- Number of contacts 2 + PE
- Cable gland PG 9 (grey)
- Cable diameter 6.5 mm
- Conductor size max. 0.75 mm²
- Standard DIN EN 175 301-803-B
- Housing Color transparent
- Construction type B
