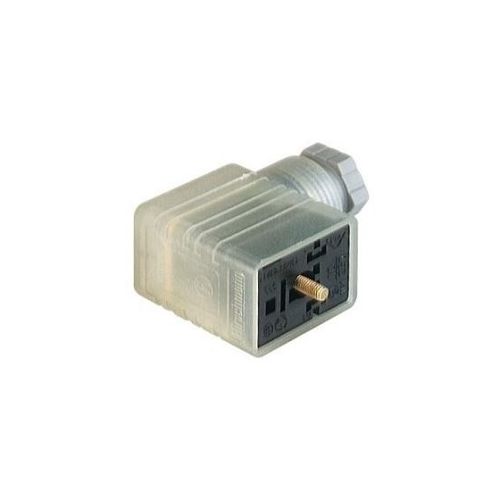

GMNL 216 NJ LED 24 HH Grey | 934460003 | Connector Form B DIN
DIN 43650 - 2 Pole + Earth, Function indicator (Red LED) with protective circuit (diode), M12, Form B DIN
| Complete Electronics Part No. | 934460003 |
|---|---|
| Manufacturers Part No. | 934 460-003 |
| Type: | Cable Socket with Electronic Insert |
| Voltage: | DC 24 V |
| Number of poles | 2+PE |
| Cable Gland Size: | M16 |
| Valve Connector Form | B |
| Termination: | Screw / Cable Shoe / Cable eye |
| Insert Type: | Protection Diode |
| Led Colour: | Red |
| IP Rating: | IP65 |
Description
GMNL 216 NJ LED 24 HH Grey
Function indicator (LED) with protective circuit (diode)
- 2 pole + Earth
- Cable gland: M 16
- Red LED
- Suitable cables: 4.5 mm to 10 mm diameter
- Rated current: 8 A
- Rated voltage: DC 24 V
