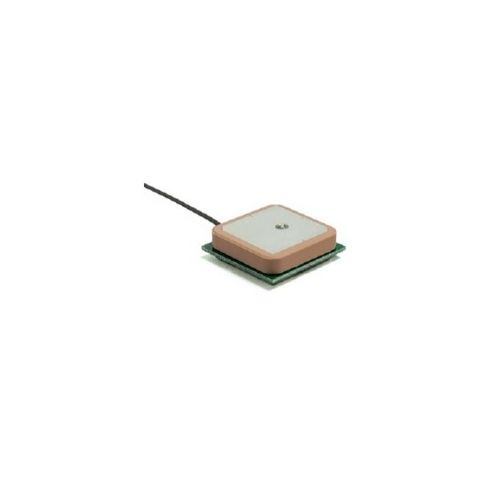

GNSS Active Patch Antenna | GNSSMOD-25-25-18
GNSS (GPS, GLONASS, Galileo, QZSS) Embedded Antenna, Dimensions 25mm x 25mm x 7.2mm (D), 18dB Single stage Amplifier
| Complete Electronics Part No. | GNSSMOD252518 |
|---|---|
| Manufacturers Part No. | GNSSMOD-25-25-18 |
| Antenna Type: | Embedded |
Description
GNSS Module with 18dB Single Stage Amplifier
Active Patch Antenna
- Footprint 25mm x 25mm x 7.2mm (D) (Excluding Self Adhesive Pad)
- Weight: 34g excluding cable and connector
- Construction material: Ceramic Patch Element / FR4 PCB / Tin Cover
- Mounting: Self-Adhesive Pad
- Frequency Range: 1575.42 MHz, 1602 MHz (+/- 5 MHz)
- 18db Single Stage Amplifier
- Impedance: 50 Ohm
- Polarisation: RHCP
- Radiation Pattern: Hemispherical
- Return Loss (VSWR): <1.5:1 (@ 1575.42MHz & 1602MHz)
- Cable types available: MICRO 0.81 / 1.13 / 1.32 / RG178 / RG316 / RG174 Low Loss
- Cable Length: According to customer specification
- Connector: According to customer specification
