GNSS, LTE-4G, CELLULAR (2G, 3G) | Telemetry Antenna

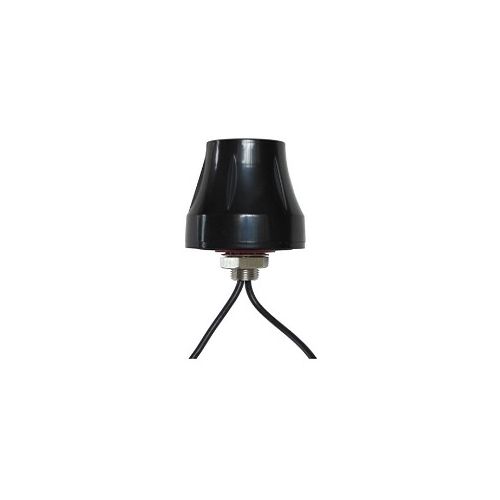

PERNO GNSS/4G, Robust Wideband Telemetry Antenna, GNSS, LTE-4G, CELLULAR (2G, 3G)
| Complete Electronics Part No. | PERNOGNSS4G |
|---|---|
| Manufacturers Part No. | PERNO GNSS/4G |
| Antenna Type: | Body/Panel Mount |
Description
Wideband Telemetry Antenna
GNSS, LTE-4G, CELLULAR (2G, 3G)
- Robust wideband body mounted antenna
- RoHS 2011/65/EU & RoHS3 (2015/863/EU compliant)
- Dimensions: 48.1mm (H) Above Panel Height x 50mm (D) (Base)
- Weight: 70g (Excluding cable)
- Construction Material: PC/ABS UL94 V0 UV Stable
- Mounting: M12 Stainless Steel Split Nut, Mounting on any surface (glass, metal, plastic etc.)
- Temperature Range:-40°C to +85°C
- Ingress Protection: IP67 (IEC 60529)
- Max Power: 35W (All Bands)
- Impedance: 50 ohm
- Polarisation: Linear
- Radiation Pattern: Omni directional
- Return Loss (VSWR): ≤ 2:1 (All Bands)
- Radiator Type: Folded Monopole
- Cable type: LL100 50 Ohm Low Loss / RG174
- Cable Length: According to customer specification
- Connector: According to customer specification
Peak Gain
- LTE 700 + GSM 900: @ 790-960 MHz; 2.1dBi
- GSM 1800: @ 1710-1880 MHz; 4.3dBi
- UMTS: @ 1920-2170 MHz; 3.6dBi
- WLAN + LTE (High): @ 2300-2700 MHz; 3.2dBi
