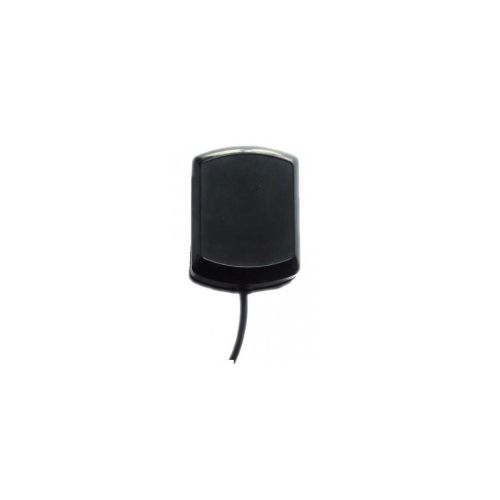

GNSS Magnetic Antenna | MULTI J GNSS-39-49
GNSS (GPS, GLONASS, Galileo, QZSS) Embedded Antenna, Dimensions 39mm x 49mm x 14.9mm (H), 28dB (@ 3v) Three stage Amplifier
| Complete Electronics Part No. | MULTIJGNSS3949 |
|---|---|
| Manufacturers Part No. | MULTI J GNSS-39-49 |
| Antenna Type | Magnetic Mount |
Description
GNSS Module with 28dB Three Stage Amplifier
MULTI J GNSS-39-49 Magnetic & Self Adhesive Antenna
- Footprint 39mm x 49mm x 14.9mm (H) (Excluding Self Adhesive Pad)
- Weight: 54g excluding cable and connector
- Construction material: PC/ABS UL94 V0 / UV Stable
- Mounting: Magnetic / Self-Adhesive Pad
- Frequency Range: 1575.42 MHz +/- 1.023MHz, 1602 MHz (+/- 4 MHz)
- 28dB Three Stage Amplifier
- Impedance: 50 Ohm
- Polarisation: RHCP
- Radiation Pattern: Hemispherical
- Return Loss (VSWR): <1.4:1 (All Frequencies)
- Amplification: 28dB @ 3v / 30dB @ 5v
- Operating Voltage: 2.7v to 5.5v
- Current Consumption: 11mA @ 2.7v /15mA @ 5v
- Cable types available: LL100 50 Ohm Low Loss / RG174
- Cable Length: According to customer specification
- Connector: According to customer specification
