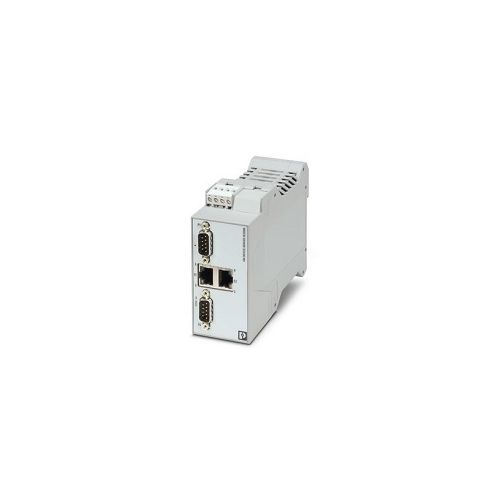

GW DEVICE SERVER 2E/2DB9 | 2702761 | Interface Converter
Serial device server for converting serial data (RS-232/422/485) to Ethernet data (RJ45). Supports TCP and UDP protocols, two RJ45 ports and two D-SUB 9 ports
| Complete Electronics Part No. | 2702761 |
|---|---|
| Manufacturers Part No. | 2702761 |
| Interface Converters etc | Interface Converters |
Description
Interface Converter
- Supply Voltage: 10.8...30 V DC
- Supply Connection: pluggable COMBICON screw terminal block
- Typical current consumption: 88 mA (at 24 V DC)
- Web-based management
- Ethernet / Connection: 2 x RJ45 (shielded) 10/100 Mbps, auto negotiation
- RS232 / RS422 / RS485 D-SUB 9 plug x 2
- LEDs: Status, ACT/LNK (Ethernet data traffic)
- Protocols supported: TCP/IP, UDP, ASCII
- Width: 45mm
- Height: 99mm
- Depth: 115mm
- Housing material: PA 6.6
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 159 g
- Part Number 2702761
- Customs tariff number: 85176200
- Country of origin: US
