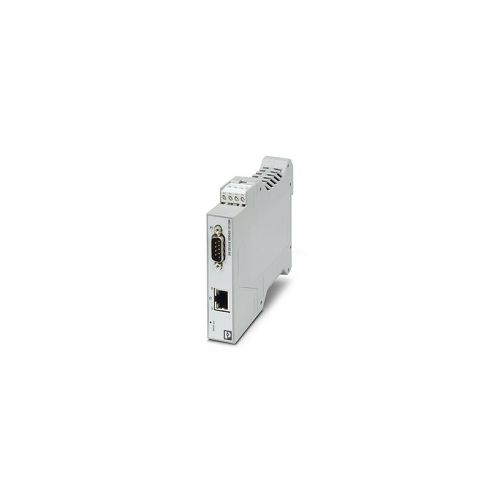

GW EIP/ASCII 1E/1DB9 | 2702772 | Interface Converter
The GW EIP/ASCII... converts RAW or ASCII serial strings into EtherNet/IP™ protocol. Includes one RJ45 port and one D-SUB 9 port.
| Complete Electronics Part No. | 2702772 |
|---|---|
| Manufacturers Part No. | 2702772 |
| Interface Converters etc | Interface Converters |
Description
Interface Converter
- Supply Voltage: 10.8...30 V DC
- Supply Connection: pluggable COMBICON screw terminal block
- Typical current consumption: 48 mA (at 24 V DC)
- Web-based management
- Ethernet
- Ethernet connection: 1 x RJ45 (shielded) 10/100 Mbps, auto negotiation
- RS232 / RS422 / RS485 D-SUB 9 plug x 1
- Width: 22.5mm
- Height: 99mm
- Depth: 115mm
- Housing material: PA 6.6
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 111 g
- Part Number 2702772
- Customs tariff number: 85176200
- Country of origin: US
