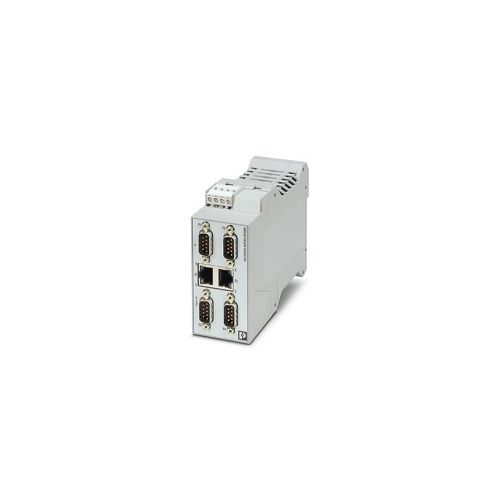

GW EIP/MODBUS 2E/4DB9 | 1062388 | Interface Converter
Enables two-way communication between EtherNet/IP™ and Modbus protocols. Includes two RJ45 ports and four D-SUB 9 ports.
| Complete Electronics Part No. | 1062388 |
|---|---|
| Manufacturers Part No. | 1062388 |
| Interface Converters etc | Interface Converters |
Description
Interface Converter - GW EIP/MODBUS 2E/4DB9
- Supply Voltage: 10.8...30 V DC
- Supply Connection: pluggable COMBICON screw terminal block
- Typical current consumption: 110 mA (at 24 V DC)
- Web-based management
- LEDs: Status, ACT/LNK (Ethernet data traffic)
- Ethernet / EtherNet/IP™ / Modbus
- Ethernet connection: 2 x RJ45 (shielded) 10/100 Mbps, auto negotiation
- RS232 / RS422 / RS485 Connections: 4
- Supported Protocols: EtherNet/IP, MODBUS ASCII/RTU/TCP
- Width: 45mm
- Height: 99mm
- Depth: 115mm
- Housing material: PA 6.6
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 250.4 g
- Part Number 1062388
- Customs tariff number: 85176200
- Country of origin: US
