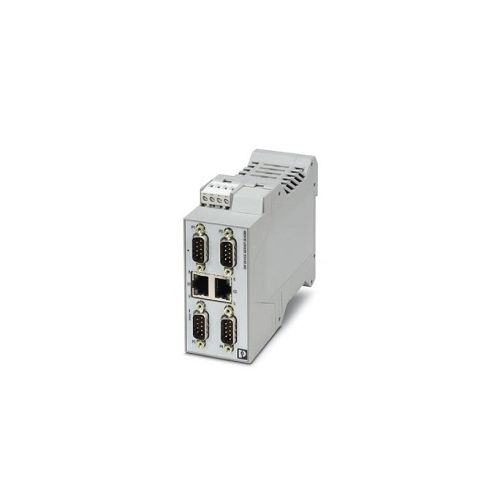

GW MODBUS TCP/ASCII 2E/4DB9 | 2702771 | Interface Converter
The GW MODBUS TCP/ASCII... converts RAW or ASCII serial strings into Modbus registers. Includes two RJ45 ports and four D-SUB 9 ports.
| Complete Electronics Part No. | 2702771 |
|---|---|
| Manufacturers Part No. | 2702771 |
| Interface Converters etc | Interface Converters |
Description
Interface Converter
- Supply Voltage: 10.8...30 V DC
- Supply Connection: pluggable COMBICON screw terminal block
- Typical current consumption: 110 mA (at 24 V DC)
- Web-based management
- Ethernet / Modbus
- Ethernet connection: 2 x RJ45 (shielded) 10/100 Mbps, auto negotiation
- RS232 / RS422 / RS485 D-SUB 9 plug x 4
- Width: 45mm
- Height: 99mm
- Depth: 115mm
- Housing material: PA 6.6
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 245 g
- Part Number 2702771
- Customs tariff number: 85176200
- Country of origin: US
