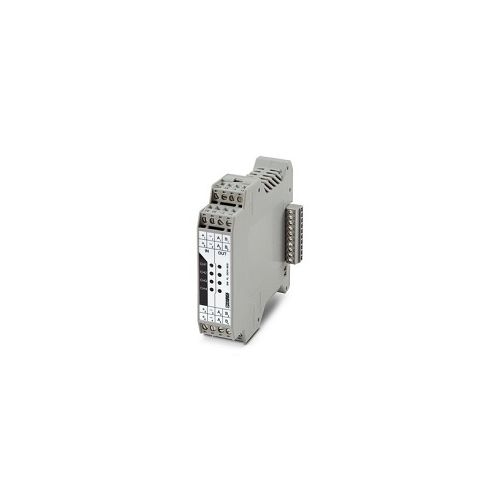

GW PL DIO4-BUS | 2702237 | Protocol Converter
Four-channel digital input and four-channel digital output module with screw connection. For use with Modbus and OPC UA protocols
| Complete Electronics Part No. | 2702237 |
|---|---|
| Manufacturers Part No. | 2702237 |
| Interface Converters etc | Protocol Converter |
Description
Protocol Converter - GW PL DIO4-BUS
- Supply Voltage: 19.2...30 V DC (Supplied from the bus)
- Typical current consumption: 15 mA (at 24 V DC)
- Digital Inputs x 4 (Screw connection)
- Digital Outputs x 4
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 70°C
- Weight per Piece (excluding packing): 325 g
- Part Number 2702237
- Customs tariff number: 85176200
- Country of origin: DE
