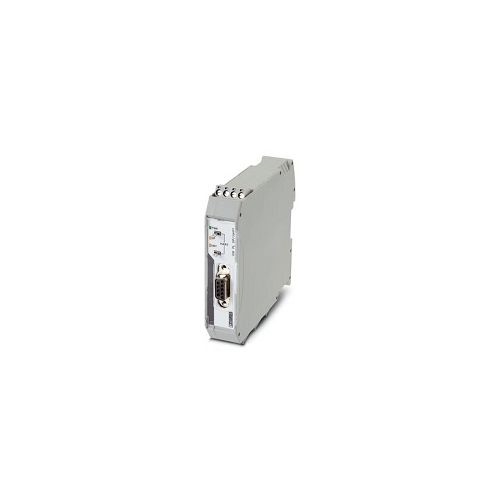

GW PL DP/HART | 2316362 | Protocol Converter
Protocol converter capable of connecting four HART (4-20 mA) devices to a PROFIBUS DP network
| Complete Electronics Part No. | 2316362 |
|---|---|
| Manufacturers Part No. | 2316362 |
| Interface Converters etc | Protocol Converter |
Description
Protocol Converter - GW PL DP/HART
- Supply Voltage: 19.2...30 V DC (Supplied from the bus)
- Max current consumption: 75 mA (at 24 V DC)
- Connection Method: COMBICON plug in screw terminal block
- HART FSK Connections x 3
- PROFIBUS DP data rate:: 9.6 Kbps (min)....12 Mbps (max) x 2
- Conection method: D-SUB 9, Combicon
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Colour: Grey
- Housing Material: PA VO
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 85°C
- Weight per Piece (excluding packing): 267.3 g
- Part Number 2316362
- Customs tariff number: 85176200
- Country of origin: US
