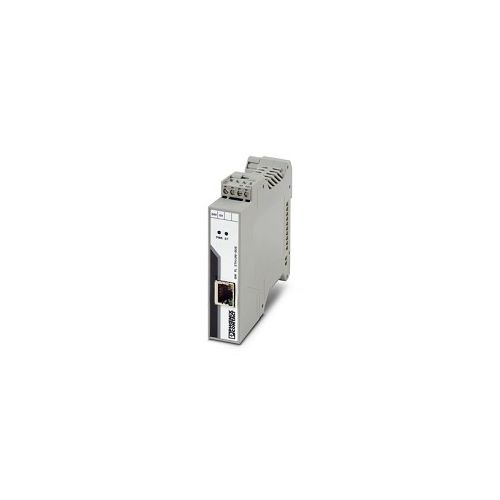

GW PL ETH/BASIC-BUS | 2702321 | Multiplexer
Ethernet head station for modular HART gateway. Connect up to five GW PL HART…-BUS expansion modules to communicate with up to 40 HART devices
| Complete Electronics Part No. | 2702321 |
|---|---|
| Manufacturers Part No. | 2702321 |
| Interface Converters etc | Multiplexer |
Description
Interface Converter, HART Multiplexer
- Supply Voltage: 19.2...30 V DC
- Typical current consumption: 45 mA (at 24 V DC)
- Web-based management
- Connection: 1 x RJ45 10/100 Mbps, auto negotiation
- LEDs:Green LED (Power and Status)
- Protocols supported: TCP/IP, HART IP, Modbus/TCP
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40°C ... 70°C
- Weight per Piece (excluding packing): 157 g
- Part Number 2702321
- Customs tariff number: 85176200
- Country of origin: DE
