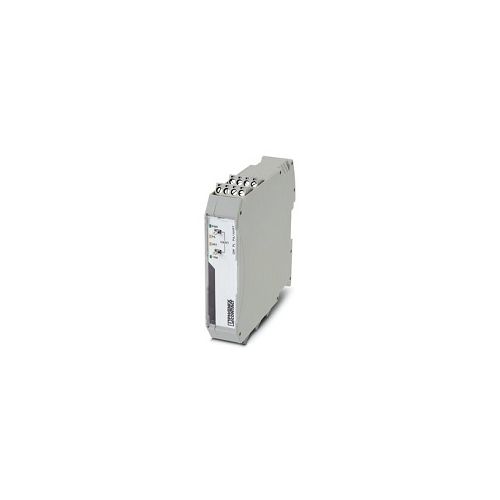

GW PL FF/HART | 2316360 | Protocol Converter
Protocol converter capable of connecting four HART (4-20 mA) devices to a Foundation Fieldbus network
| Complete Electronics Part No. | 2316360 |
|---|---|
| Manufacturers Part No. | 2316360 |
| Interface Converters etc | Protocol Converter |
Description
Protocol Converter - GW PL FF/HART
- Supply Voltage: 19.2...30 V DC (Supplied from the bus)
- Max current consumption: 70 mA (at 24 V DC)
- Connection Method: COMBICON plug in screw terminal block
- HART FSK Connections x 3
- 4 (Active/Passive HART devices)
- Foundation Fieldbus Data Rate: 31.25 Kbps
- Conection method: Combicon
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Colour: Grey
- Housing Material: PA VO
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 85°C
- Weight per Piece (excluding packing): 270.8 g
- Part Number 2316360
- Customs tariff number: 85176200
- Country of origin: US
