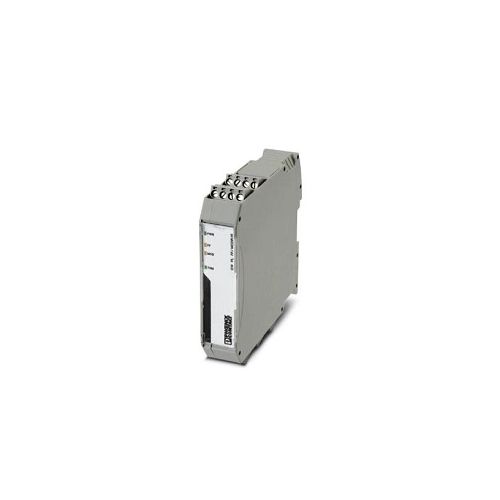

GW PL FF/MODBUS | 2316363 | Protocol Converter
Protocol converter capable of connecting four Modbus/RTU devices to a FOUNDATION Fieldbus network
| Complete Electronics Part No. | 2316363 |
|---|---|
| Manufacturers Part No. | 2316363 |
| Interface Converters etc | Protocol Converter |
Description
Protocol Converter - GW PL DP/MODBUS
- Supply Voltage: 10.8...30 V DC
- Nominal Supply Voltage: 24 V DC
- Typical current consumption: 34 mA (at 24 V DC)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Foundation Fieldbus Data Rate: 31.25 kbps
- Number of connections: 1
- Modbus / RTU Connection: Combicon x 2
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Housing material: PA V0
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 85°C
- Weight per Piece (excluding packing): 203.1 g
- Part Number 2316363
- Customs tariff number: 85176200
- Country of origin: US
