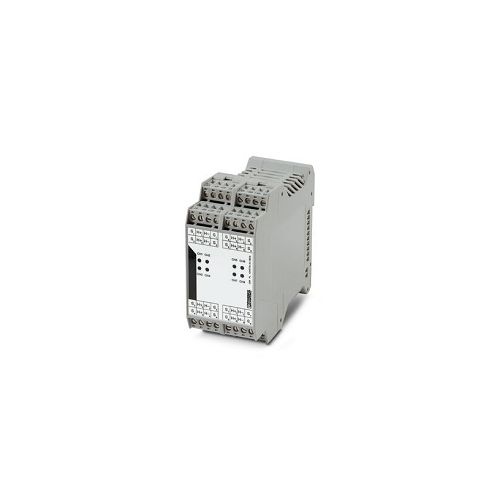

GW PL HART8-BUS | 2702235 | Protocol Converter
Eight-channel HART® expansion module with screw connection
| Complete Electronics Part No. | 2702235 |
|---|---|
| Manufacturers Part No. | 2702235 |
| Interface Converters etc | Protocol Converter |
Description
Protocol Converter - GW PL HART8-BUS
- Supply Voltage: 19.2...30 V DC (Supplied from the bus)
- Typical current consumption: 46 mA (at 24 V DC)
- HART FSK Transmission Speed 1200bps
- Input Impedance: 240 Ω
- Screw Connection
- 8 Channels
- Width: 45mm
- Height: 99mm
- Depth: 114.5mm
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 70°C
- Weight per Piece (excluding packing): 310 g
- Part Number 2702235
- Customs tariff number: 85176200
- Country of origin: DE
