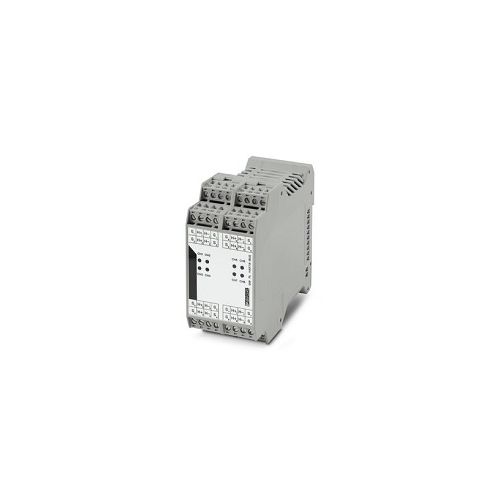

GW PL HART8-R-BUS | 2702880 | Protocol Converter
Eight-channel HART® expansion module, with screw connection, with 250 Ω internal input resistors
| Complete Electronics Part No. | 2702880 |
|---|---|
| Manufacturers Part No. | 2702880 |
| Interface Converters etc | Protocol Converter |
Description
Eight-channel HART® expansion module
- Supply Voltage: 10.8...30 V DC
- Nominal Supply Voltage: 24 V DC
- Typical current consumption: 46mA (at 24 V DC)
- HART FSK Transmission Speed: 1200 bps
- Number of channels: 8
- Width: 45mm
- Height: 99mm
- Depth: 114.5mm
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 70°C
- Weight per Piece (excluding packing): 310 g
- Part Number 2702880
- Customs tariff number: 85176200
- Country of origin: DE
