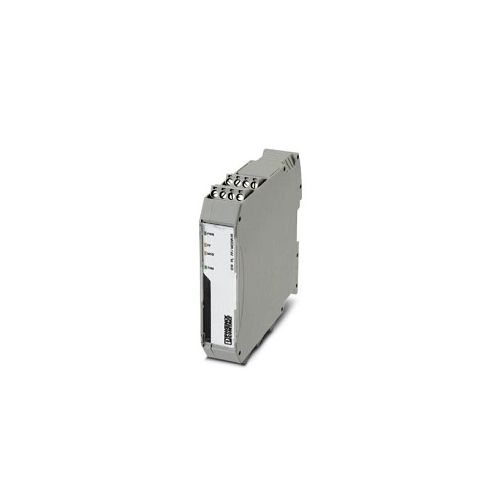

GW PL PA/MODBUS | 2316364 | Protocol Converter
Protocol converter capable of connecting four Modbus/RTU devices to a PROFIBUS PA network
| Complete Electronics Part No. | 2316364 |
|---|---|
| Manufacturers Part No. | 2316364 |
| Interface Converters etc | Protocol Converter |
Description
Protocol Converter - GW PL PA/MODBUS
- Supply Voltage: 19.2...30 V DC (Supplied from the bus)
- Typical current consumption: 34 mA (at 24 V DC)
- Connection Method: COMBICON plug in screw terminal block
- Modbus/RTU data rate: 115.2Kbps x 2
- PROFIBUS PA: 31.25 Kbps
- Width: 22.5mm
- Height: 99mm
- Depth: 114.5mm
- Colour: Grey
- Housing Material: PA VO
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 85°C
- Weight per Piece (excluding packing): 206 g
- Part Number 2316364
- Customs tariff number: 85176200
- Country of origin: US
