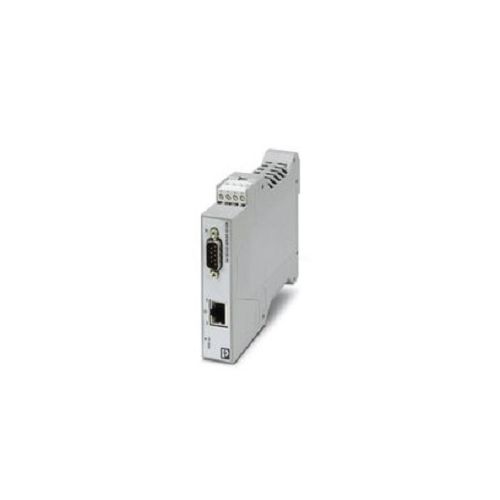

GW PN/ASCII 1E/1DB9 | 1021080 | Interface Converter
The GW PN/ASCII... converts RAW or ASCII serial strings into PROFINET. Includes one RJ45 port and one D-SUB 9 port
| Complete Electronics Part No. | 1021080 |
|---|---|
| Manufacturers Part No. | 1021080 |
| Interface Converters etc | Interface Converters |
Description
Interface Converter - GW PN/ASCII 1E/1DB9
- Supply Voltage: 10.8...30 V DC
- Typical current consumption: 48 mA (at 24 V DC)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Ethernet /Profinet interface, 10/100Base-T(X) RJ45n accordance with IEEE 802.3 (Shielded)
- V.24 (RS-232)
- RS-422
- RS-485
- Width: 22.5mm
- Height: 99mm
- Depth: 115mm
- Housing material: PA 6.6
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 70 °C
- Weight per Piece (excluding packing): 167.45 g
- Part Number 1021080
- Customs tariff number: 85176200
- Country of origin: US
