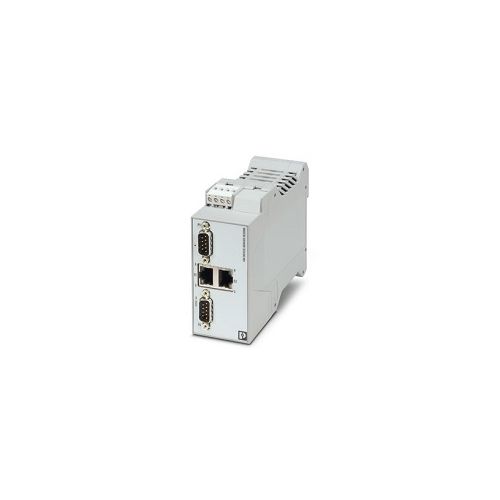

GW PN/ASCII 2E/2DB9 | 1021056 | Interface Converter
Converts RAW or ASCII serial strings into PROFINET. Includes two RJ45 ports and two D-SUB 9 ports
| Complete Electronics Part No. | 1021056 |
|---|---|
| Manufacturers Part No. | 1021056 |
| Interface Converters etc | Interface Converters |
Description
Interface Converter - GW PN/ASCII 2E/2DB9
- Supply Voltage: 10.8...30 V DC
- Typical current consumption: 88 mA (at 24 V DC)
- Power Connection method: :via pluggable COMBICON screw terminal block
- Ethernet Profinet interface, 10/100Base-T(X) RJ45n accordance with IEEE 802.3 (Shielded)
- No. Ethernet/PROFINET Channels: 2
- RS-232/RS-422RS-RS485 channels x 2
- Width: 45mm
- Height: 99mm
- Depth: 115mm
- Housing material: PA 6.6
- Colour: Grey
- DIN Rail Mounting
- Ingress protection: IP20
- Operating Temperature: -40 °C ... 70 °C
- Weight per Piece (excluding packing): 210.9 g
- Part Number 1021056
- Customs tariff number: 85176200
- Country of origin: US
