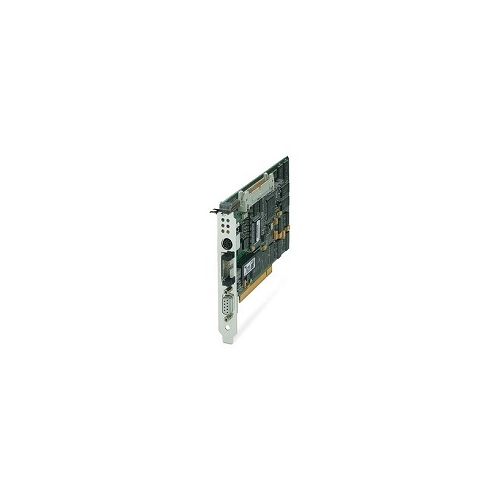

IBS PCI SC/I-T | 2725260 | Termination Board
PCI master controller board with electrical isolation, Access to INTERBUS system data and controller data via visualization stations
| Complete Electronics Part No. | 2725260 |
|---|---|
| Manufacturers Part No. | 2725260 |
| Ethernet Product Type: | Termination |
Description
Termination Board - IBS PCI SC/I-T SCX 4POE 2T
- Access to INTERBUS system data and controller data via visualization stations
- INTERBUS parameter channel (PCP) supported
- Access to high-level language applications via HFI
- EMC: class A product
- Power Suppy Connection: Via PCI Bus
- Typical Current Consumption: 0.7A
- 6 x (EN 61131-2 type 1) Digital Inputs
- Connection Technology: FLK cable connector (14-pos.)
- 2 x Digital Outputs Max current per Channel: 0.5 A
- Interrupts: 1 IRQ, PnP
- Interbus: 9-pos. D-SUB female connector, with electrical isolation
- Transmission Speed: 500 Kbps
- Parameterization/operation/diagnostics: RS-232-C, Mini-DIN female
- Direct I/Os Connection Method: 14-pos. FLK pin strip
- Width: 168 mm
- Height: 20 mm
- Depth: 121mm
- Ingress Protection: IP20 (Must be installed in a device with IP20)
- Weight Per piece (not including packing): 126.1 g
- Part Number: 2725260
- Customs tariff number:84733020
- Country of origin: DE
