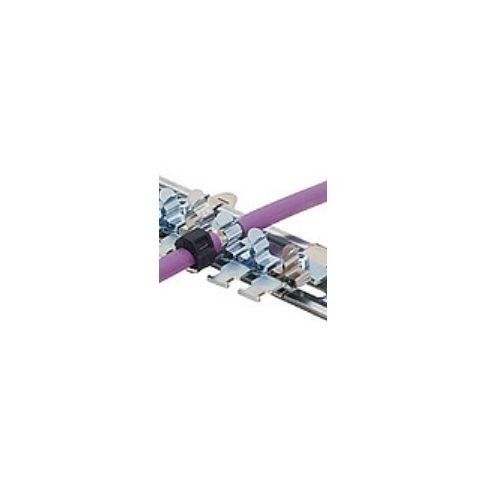

icotek 38110 | SF/RLFZ x 04 | Clamp Assembly
EMC Clamp Assembly, For 35mm DIN Rail, shape H, Mounted on snap feet, Number of Shield clamps: 4 x SKL, Length: 56.8mm, Width: 70.7mm
| Complete Electronics Part No. | 38110 |
|---|---|
| Manufacturers Part No. | 38110 |
| Cable Clamp Assembly Type: | SF/RLFZ |
Description
Length: 56.8mm
Width: 70.7mm
Height: 15.4mm
Max number of cables: 4
Packing Unit: 1
icotek Order Number: 38110
EAN: 4251269305863
icotek 38110 | SF/RLFZ x 04 | Clamp Assembly
EMC Clamp Assembly
For 35mm DIN Rail, shape H
Screw type mounting
Mounted on snap feet
Number of Shield clamps: 4 x SKL
SKL Clamp: Spring Steel, Zinc Plated
RLF Foot: Sheet Steel, galvanically zinc plated
Separate strain relief and EMC shield earthing
Screw type mounting
Mounted on snap feet
Number of Shield clamps: 4 x SKL
SKL Clamp: Spring Steel, Zinc Plated
RLF Foot: Sheet Steel, galvanically zinc plated
Separate strain relief and EMC shield earthing
Length: 56.8mm
Width: 70.7mm
Height: 15.4mm
Max number of cables: 4
Packing Unit: 1
icotek Order Number: 38110
EAN: 4251269305863
