icotek 41500 | KT - DT1 | Cable Grommet
Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without connectors, Number of Cables: 12 max. 6.5 mm + 2 max. 12.2 mm
| Complete Electronics Part No. | 41500 |
|---|---|
| Manufacturers Part No. | 41500 |
| Number of Cables: | max 14 |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Square |
Description

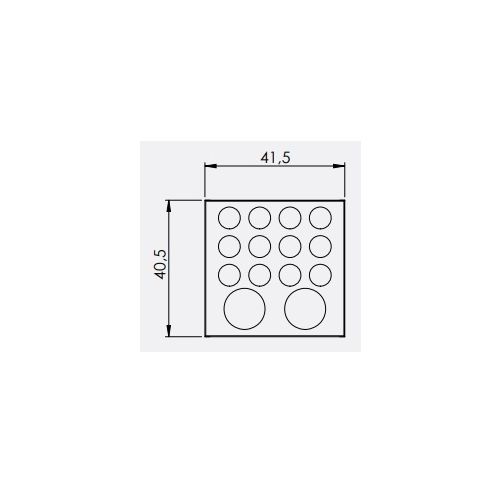

Length: 41.5mm
Width: 40.5mm
Height: 19 mm
Mounting height: 2 mm
Clamping range: 12 × 1 - 6.5mm, 2 × 1 - 12.2mm
Temperature: - 40°C to + 90°C
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Ingress Protection: IP54
UL type 12 (acc. to UL 50E)
Halogen and Silicone Free
Pack Unit: 10 Piece(s)
icotek Order Number: 41500
EAN: 4251269307287
icotek 41500 | KT -DT1 | Cable Grommet
Multi Membrane Cable Grommet
Compatible with split icotek cable entry frames
For cables without preassembled connectors
For wire type: Round cable
Max 14 Cables
For cables without preassembled connectors
For wire type: Round cable
Max 14 Cables
Length: 41.5mm
Width: 40.5mm
Height: 19 mm
Mounting height: 2 mm
Clamping range: 12 × 1 - 6.5mm, 2 × 1 - 12.2mm
Temperature: - 40°C to + 90°C
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Ingress Protection: IP54
UL type 12 (acc. to UL 50E)
Halogen and Silicone Free
Pack Unit: 10 Piece(s)
icotek Order Number: 41500
EAN: 4251269307287
