icotek 41552 | KT - DT 8 | Cable Grommet

Membrane Cable Grommet, Compatible with split icotek cable entry frames, For cables without connectors, Number of Cables: 2 max. 7 mm + 2 max. 4 mm
More Information
Complete Electronics Part No 41552
Manufacturers Part No. 41522
Number of Cables max 4
ATEX Approval Not ATEX Approved
Enclosure Shape Square
Description

icotek 41552 | KT - DT 8 | Cable Grommet

Membrane Cable Grommet

  • Compatible with split icotek cable entry frames
  • For cables without preassembled connectors
  • EAN: 4251269319211
  • Pack Unit: 10 Piece(s)
  • Clamping range: 2 × 1 - 7 mm, 2 × 1 - 4 mm
  • For wire type: Round cable

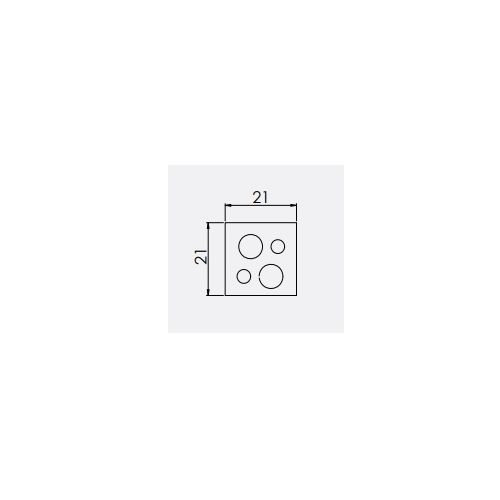

  • Length: 21 mm
  • Width: 21 mm
  • Height: 19 mm
  • Mounting height: 2 mm
  • Material: Elastomer
  • Flame Class: UL94-V0, self-extinguishing
  • Ingress Protection: IP54
  • UL type 12 (acc. to UL 50E)
  • Temperature: - 40°C to + 90°C (static)
  • Halogen and Silicone Free
  • icotek Order Number: 41552
