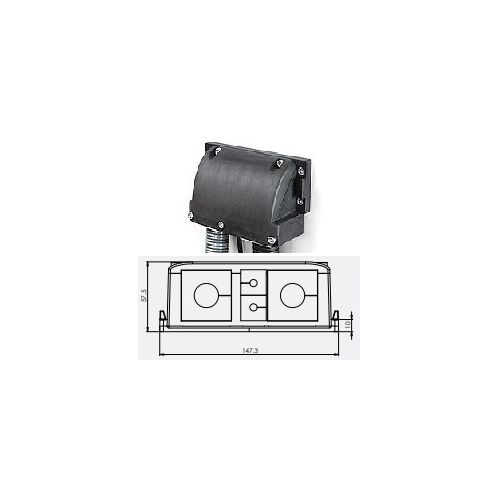

icotek 42324 | KEL- FG-A4 black | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 2 x Small + 2 x Large, Length: 147mm, Width 80mm
| Complete Electronics Part No. | 42324 |
|---|---|
| Manufacturers Part No. | 42324 |
| Number of Cables: | max 10 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL FG A |
Description
Length: 147mm
Width: 80mm
Height: 57.5mm
Cut out size: 112 x 36mm
Max No. cables: 10
Max Cable Diameter 35mm
Number of screw holes: 4
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 1
Icotek Order Number: 42324
EAN: 4251269308475
icotek 42324 | KEL- FG-A4 black | Entry Frames
Split Cable Entry Frames
Number of Grommets: 2 KT Small + 2 KT Large
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 147mm
Width: 80mm
Height: 57.5mm
Cut out size: 112 x 36mm
Max No. cables: 10
Max Cable Diameter 35mm
Number of screw holes: 4
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 1
Icotek Order Number: 42324
EAN: 4251269308475
