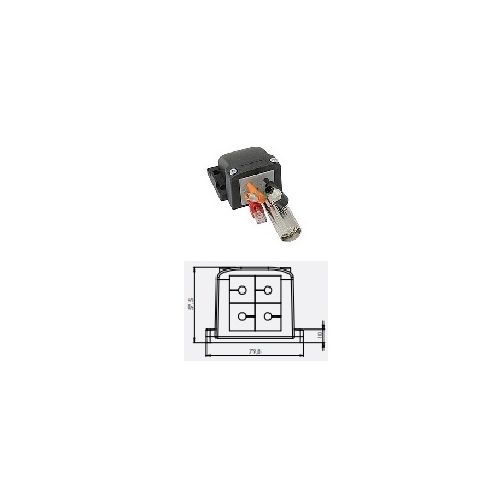

icotek 42330 | KEL- FG-B4 black | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 4 x Small, Length: 79.8mm, Width 80mm, Height 57.5mm
| Complete Electronics Part No. | 42330 |
|---|---|
| Manufacturers Part No. | 42330 |
| Number of Cables: | max 16 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL FG B |
Description
Length: 79.8mm
Width: 80mm
Height: 57.5mm
Cut out size: x mm
Max No. cables: 16
Max Cable Diameter 17mm
Number of screw holes: 4
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 1
Icotek Order Number: 42330
EAN: 4251269308499
icotek 42330 | KEL- FG-B4 black | Entry Frames
Split Cable Entry Frames
Number of Grommets: 4 KT Small
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 79.8mm
Width: 80mm
Height: 57.5mm
Cut out size: x mm
Max No. cables: 16
Max Cable Diameter 17mm
Number of screw holes: 4
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 1
Icotek Order Number: 42330
EAN: 4251269308499
