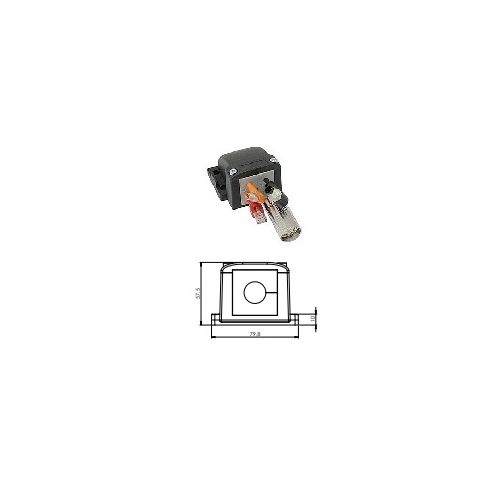

icotek 42332.200 | KEL-FG-B1 black V2A | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 1 x Large, Length: 79.8mm, Width 80mm, Height 57.5mm
| Complete Electronics Part No. | 42332.200 |
|---|---|
| Manufacturers Part No. | 42332.200 |
| Number of Cables: | max 1 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL FG B |
Description
Length: 79.8mm
Width: 80mm
Height: 57.5mm
Cut out size: x mm
Max No. cables: 1
Max Cable Diameter 35mm
Number of screw holes: 4
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Stainless Steel (V2A)
Packing Unit: 1
Icotek Order Number: 42332.200
EAN: 4251269308529
icotek 42332.200 | KEL-FG-B1 black V2A | Entry Frames
Cable Entry Frames
Number of Grommets: 1 KT Large
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 79.8mm
Width: 80mm
Height: 57.5mm
Cut out size: x mm
Max No. cables: 1
Max Cable Diameter 35mm
Number of screw holes: 4
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Stainless Steel (V2A)
Packing Unit: 1
Icotek Order Number: 42332.200
EAN: 4251269308529
