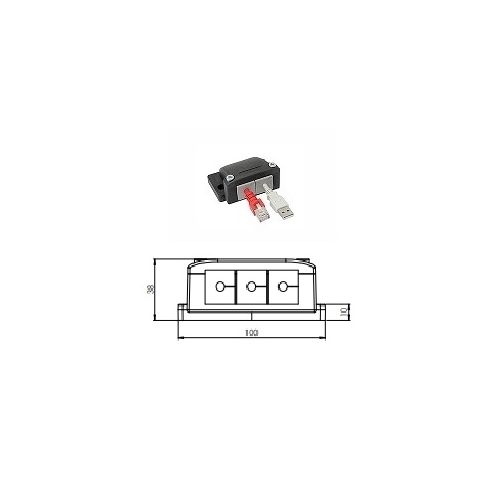

icotek 42334 | KEL-FG-E3 black | Entry Frames
Cable Entry Frames, At an angle of 90deg; to the cabinet / enclosure, Number of grommets: 3 x Small, Length: 100mm, Width 53mm, Height 38mm
| Complete Electronics Part No. | 42334 |
|---|---|
| Manufacturers Part No. | 42334 |
| Number of Cables: | max 12 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL FG E |
Description
Length: 100mm
Width: 53mm
Height: 38mm
Cut out size: 65 x 24mm
Max No. cables: 12
Max Cable Diameter 17mm
Number of screw holes: 2
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 5
Icotek Order Number: 42334
EAN: 4251269316616
icotek 42334 | KEL-FG-E3 black | Entry Frames
Cable Entry Frames
Number of Grommets: 3 KT Small
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
For cables with connectors and conduits at an angle of 90° to the cabinet
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 100mm
Width: 53mm
Height: 38mm
Cut out size: 65 x 24mm
Max No. cables: 12
Max Cable Diameter 17mm
Number of screw holes: 2
Screw hole diameter: 5.5mm
Screw type mounting
Snap-in with KEL-SNAP
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 5
Icotek Order Number: 42334
EAN: 4251269316616
