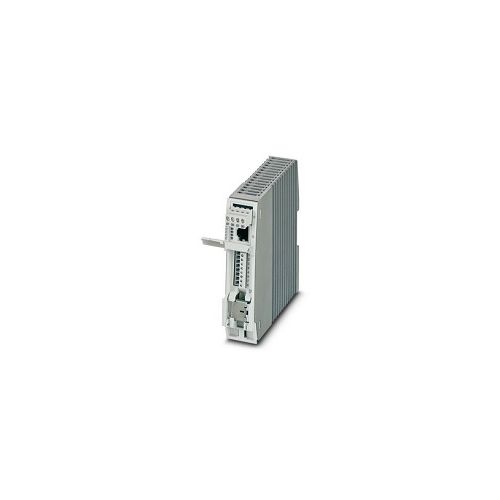

IINJ 2101-T | 2703011 | PoE Injector
PoE injector, 30 W, RJ45 jack on screw terminal blocks, 10/100/1000 Mbps, DIN rail mounting, IP20, shield current monitoring
| Complete Electronics Part No. | 2703011 |
|---|---|
| Manufacturers Part No. | 2703011 |
| Ethernet Product Type: | POE Injector |
Description
PoE Injector - INJ 2101-T
- Shield contacting with strain relief
- Shield current monitoring
- Surge protection
- Supply Voltage Range: 18 V DC ... 57 V DC
- Nominal Supply Voltage: 24 V DC / 48 V DC (SELV/PELV, restrictions for ATEX applications) / 48 V DC
- Conductor cross section: AWG 20 ... 12
- Max Current Consumption: 2.1 A
- Connection: RJ45 and screw terminal
- Supply Connection: Screw connection
- Serial Transmission Speed 10/100/1000 Mbps
- Frequency range: 125 MHz
- Conformance with EMC Directive 2014/30/EU / FCC Part 15B Class A
- Nominal Output Voltage: 54V DC (PoE)
- Output Power 30 W
- LED Signalling: Yellow LED
- Width: 30.2 mm
- Height: 130 mm
- Depth: 120 mm
- Colour: Grey
- Housing Material: Plastic
- Ingress Protection: IP20 (Manufacturer's declaration)
- DIN rail mounting
- UL Listed
- ATEX Approved
- Operating Temperature: -40°C ... 75°C (observe derating)
- Weight per Piece (excluding packing): 487.8 g
- Part Number 2703011
- Customs tariff number:: 85176200
- Country of origin: DE
