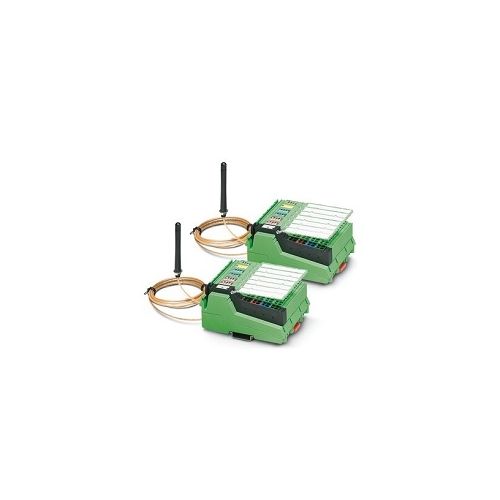

ILB BT ADIO MUX-OMNI | 2884208 | Wireless Set
Wireless-MUX set, two modules with 16 digital inputs and outputs and 2 analog inputs and outputs (0 ... 20 mA, 0 ... 10 V) each, incl. omnidirectional antennas
| Complete Electronics Part No. | 2901541 |
|---|---|
| Manufacturers Part No. | 2901541 |
| Ethernet Product Type: | Wireless Set |
Description
Wireless Set - ILB BT ADIO MUX-OMNI
- Supply Voltage range: 19.2 V DC ... 30.5 V DC
- Supply Current:: ≤ 60 mA (at 24 V DC, at 25 °C, stand-alone) / 25 mA (Actuator supply, +load current Digital OUT (8 A))
- Polarity protection, surge protection
- Analog input / Outputs x 2
- Digital Input / Outputs x 16
- Antenna Connection: RSMA (female)
- Frequency range: 2.402 GHz ... 2.48 GHz (ISM bandwidth)
- Wireless standard: Based on Bluetooth 4.0
- Conformance with EMC Directive 2014/30/EU
- Width: 95mm
- Height: 123.4mm
- Depth: 57 mm
- Housing material: PA 6.6-FR
- Colour: Green
- Ingress protection: IP20
- Operating Temperature: -25°C ... 60°C
- Weight per Piece (excluding packing): 885 g
- Part Number 2884208
- Customs tariff number: 85176200
- Country of origin: DE
| Polarity protection, surge protection |
