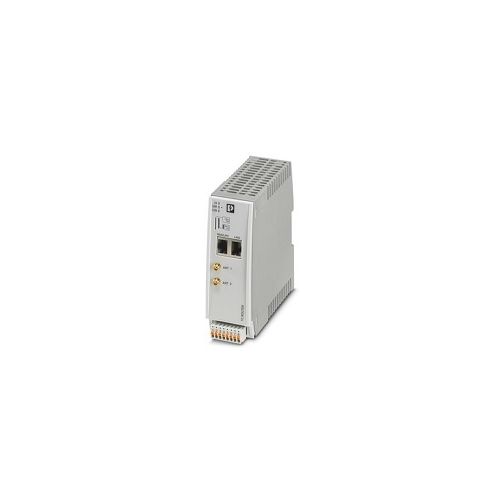

Industrial 4G LTE router, EU device | 1234352
Industrial 4G LTE router, EU device, 3G (UMTS/HSPA) and 2G (GPRS/EDGE) fallback, 2-port switch, firewall, NAT, IPsec and OpenVPN support, 4 DI, 2 DO
| Complete Electronics Part No. | 1234352 |
|---|---|
| Manufacturers Part No. | 1234352 |
| Ethernet Product Type: | Firewall / Router |
| Total 10/100 (RJ45) Ports: | 2 |
| IP Rating: | IP20 |
Description
TC ROUTER 4002T-4G EU
2 port switch
- 4 Digital Inputs (DI)
- 2 Digital Outputs (DO)
- Supply Voltage Range: 10 V DC...30 V DC (Via pluggable Push-in terminal block)
- Push in spring connection
- Typical Current Consumption: < 180 mA (24 V DC), < 500 mA (10 V DC),
- Web Based Management, SNMPv1/v2/v3,. SSHv2, Telnet
- Micro SDHC card for storage
- Voltage input signal: 10 V DC ... 30 V DC
- Output voltage signal: 10 V DC ... 30 V DC (depending on the operating voltage)
- Current output signal: ≤ 50 mA (Not short-circuit proof)
- Serial transmission speed: 10/100 Mbps, auto negotiation
- GSM / GPRS / EDGE / UMTS / HSPA / LTE (FDD)
- Degree of protection: IP20
- Operating Temperature: -40°C ... 70°C
- Width: 45mm
- Height: 130mm
- Depth: 130mm
- Mounting Type: DIN Rail
- Housing material: Grey Polycarbonate
- Weight per Piece (excluding packing): 332 g
- Part Number 1234352
- Customs tariff number: 85176200
- Country of origin: DE
