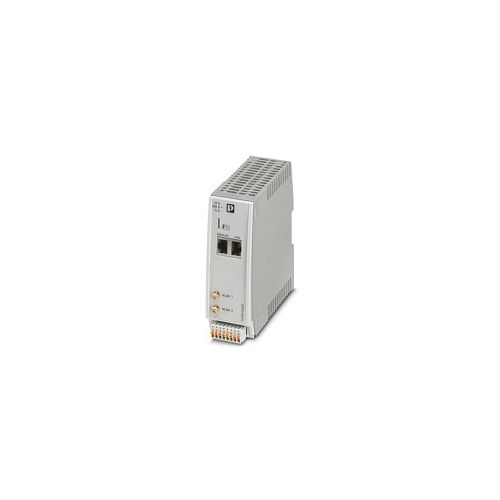

Industrial VPN gateway | 1234360 | Router
Industrial VPN gateway for mGuard Secure Cloud, 2 port switch, communication via WLAN client 802.11a/b/g/n, 150 Mbps, 2.4 GHz + 5 GHz
| Complete Electronics Part No. | 1006188 |
|---|---|
| Manufacturers Part No. | 1006188 |
| Ethernet Product Type: | Router |
| Total 10/100 (RJ45) Ports: | 2 |
| IP Rating: | IP20 |
Description
CLOUD CLIENT 2002T-WLAN
2 port switch
2 x antenna connections RSMA WLAN
4 Digital Inputs (DI)
2 Digital Outputs (DO)
Supply Voltage Range: 10 V DC...30 V DC (Via pluggable Push-in terminal block)
Push in spring connection
Typical Current Consumption: < 180 mA (24 V DC), < 500 mA (10 V DC),
Web Based Management, SNMPv1/v2/v3
Micro SDHC card for storage
Voltage input signal: 10 V DC ... 30 V DC
Input Swithing level "0" <8 V DC
Input Switching level "1" 10 V DC ... 30 V DC
Output voltage signal: 10 V DC ... 30 V DC (depending on the operating voltage)
Current output signal: ≤ 50 mA (Not short-circuit proof)
Serial transmission speed: 10/100 Mbps, auto negotiation
WLAN in accordance with IEEE 802.11 a/b/g/n
Data rate @2.4GHz: 11 Mbps, 54 Mbps, 144 Mbps
Data rate @ 5 GHz: 54 Mbps, 150 Mbps,
Degree of protection: IP20
Operating Temperature: -40°C ... 70°C
Width: 45mm
Height: 130mm
Depth: 130mm
Mounting Type: DIN Rail
Housing material: Grey Polycarbonate
Weight per Piece (excluding packing): 320.3 g
Part Number 1234360
Customs tariff number: 85176200
Country of origin: DE
