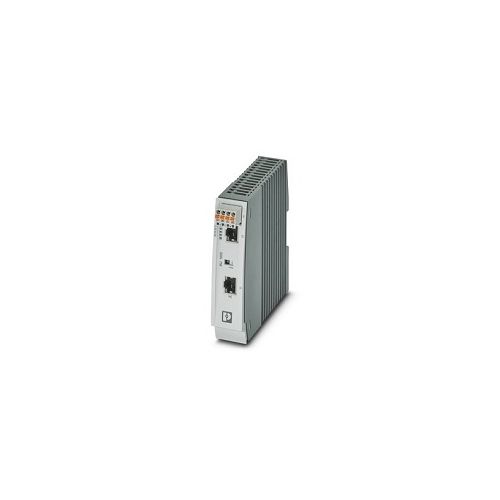

INJ 1000 | 2703005 | PoE Injector
PoE injector, 30 W, two RJ45 jacks, 10/100/1000 Mbps, DIN rail mounting, IP20, supplies the required power to a powered device (PD) via the data cable
| Complete Electronics Part No. | 2703005 |
|---|---|
| Manufacturers Part No. | 2703005 |
| Ethernet Product Type: | POE Injector |
Description
PoE Injector - INJ 1000
- PoE injector, 30 W
- Supply Voltage Range: 18 V DC ... 57 V DC (Ordinary locations)
- Supply Voltage Range: 24 V DC ... 48 V DC (Hazardous locations)
- Max Current Consumption: 2.1 A
- Reverse Polarity Protection
- Serial Transmission Speed 10/100/1000 Mbps
- Connection method: RJ45 x 2
- PSE/Midspan, compliant with IEEE 802.3af, at
- Nominal Output Voltage: 54V DC (PoE)
- Output Power 30 W
- Conductor cross section AWG: 20 ... 12
- Width: 30.2 mm
- Height: 130 mm
- Depth: 120 mm
- Colour: Grey
- Housing Material: Plastic
- Ingress Protection: IP20
- DIN rail mounting
- ATEX Certified
- Operating Temperature: 0°C ... 60°C
- Weight per Piece (excluding packing): 396.6 g
- Part Number 2703005
- Customs tariff number:85176200
- Country of origin: TW
