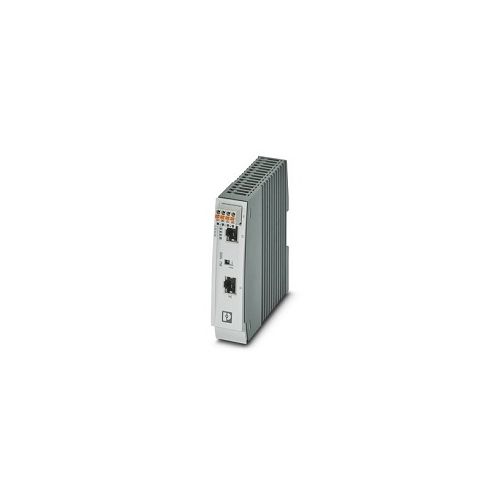

INJ 1000-T | 2703006 | PoE Injector
PoE injector, 30 W, two RJ45 jacks, 10/100/1000 Mbps, DIN rail mounting, IP20, expanded temperature range
| Complete Electronics Part No. | 2703006 |
|---|---|
| Manufacturers Part No. | 2703006 |
| Ethernet Product Type: | POE Injector |
Description
PoE Injector - INJ 1000-T
- PoE injector, 30 W
- Two RJ45 jacks
- 1:1 pin assignment
- CAT 5e 10/100/1000 Mbps
- Connection method: RJ45 x 2
- PSE/Midspan, compliant with IEEE 802.3af, at
- Supply Voltage Range: 18 V DC ... 57 V DC (Ordinary locations)
- Supply Voltage Range: 24 V DC ... 48 V DC (Hazardous locations)
- Max. current consumption: 2.1A
- Reverse polarity protection
- Width: 30.2 mm
- Height: 130 mm
- Depth: 120 mm
- Colour: Grey
- Housing Material: Plastic
- Ingress Protection: IP20
- DIN rail mounting
- ATEX / DNV GL CertifiedUL Certified: Class I, Div. 2, Groups A, B, C, D T4
- Operating Temperature: -40°C ... 75°C
- Weight per Piece (excluding packing): 377.8 g
- Part Number 2703006
- Customs tariff number:85176200
- Country of origin: TW
