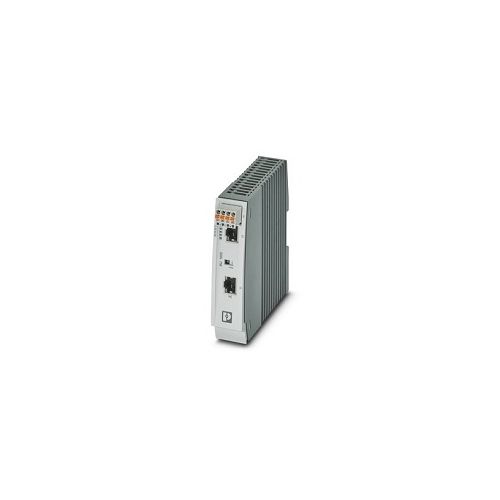

INJ 1010 | 2703007 | PoE Injector
PoE injector, 60 W, two RJ45 jacks, 10/100/1000 Mbps, DIN rail mounting, IP20
| Complete Electronics Part No. | 2703007 |
|---|---|
| Manufacturers Part No. | 2703007 |
| Ethernet Product Type: | POE Injector |
Description
PoE Injector - INJ 1010
- PoE injector, 60 W
- Supply Voltage Range: 18 V DC ... 57 V DC (Ordinary locations)
- Supply Voltage Range: 24 V DC ... 48 V DC (Hazardous locations)
- Nominal Supply Voltage: 48 V DC
- Max Current Consumption: 4.2 A
- Connection: RJ45 x 2
- Serial Transmission Speed 10/100/1000 Mbps
- PSE/Midspan, compliant with IEEE 802.3af, at
- Nominal Output Voltage: 54V DC (PoE)
- Output Power 60 W
- Conductor cross section AWG: 20 ... 12
- Width: 30.2 mm
- Height: 130 mm
- Depth: 120 mm
- Colour: Grey
- Housing Material: Plastic
- Ingress Protection: IP20
- DIN rail mounting
- UL Listed
- Operating Temperature: -0°C ... 60°C, (Non-certificated by UL)
- Weight per Piece (excluding packing): 394 g
- Part Number 2703007
- Customs tariff number:85176200
- Country of origin: TW
