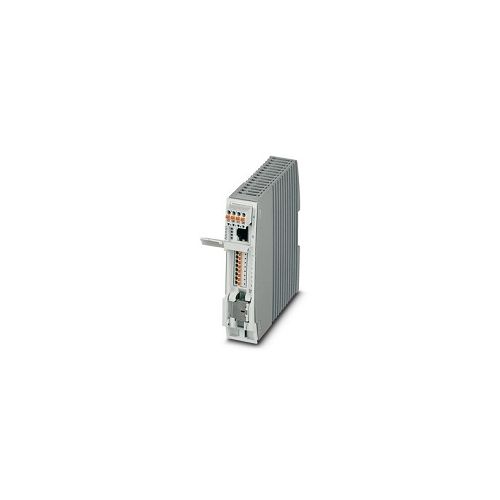

INJ 2103-T | 1004065 | PoE Injector
PoE injector, 30 W, RJ45 jack on Push-in terminal blocks, 10/100/1000 Mbps, DIN rail mounting, IP20
| Complete Electronics Part No. | 1004065 |
|---|---|
| Manufacturers Part No. | 1004065 |
| Ethernet Product Type: | POE Injector |
Description
PoE Injector - INJ 2103-T
- Supply Voltage Range: 18 V DC ... 57 V DC (Ordinary locations)
- Supply Voltage Range: 24 V DC ... 48 V DC (SELV/PELV, restrictions for ATEX applications)
- Nominal Supply Voltage: 24 V DC / 48 V DC
- Max Current Consumption: 4.2 A
- Integrated surge protection to ensure high system availability
- Connection: RJ45
- Push-in connection
- Serial Transmission Speed 10/100/1000 Mbps
- PSE/Midspan, compliant with IEEE 802.3af, at
- Conformance with EMC Directive 2014/30/EU / FCC Part 15B Class A
- Nominal Output Voltage: 54V DC (PoE)
- Output Power 60 W
- Width: 30.2 mm
- Height: 130 mm
- Depth: 120 mm
- Colour: Grey
- Housing Material: Plastic
- Ingress Protection: IP20 (Non-certificated by UL)
- DIN rail mounting
- ATEX approved
- UL Listed
- Operating Temperature: -40°C ... 75°C
- Weight per Piece (excluding packing): 324.72 g
- Part Number 1004065
- Customs tariff number:: 85176200
- Country of origin: DE
