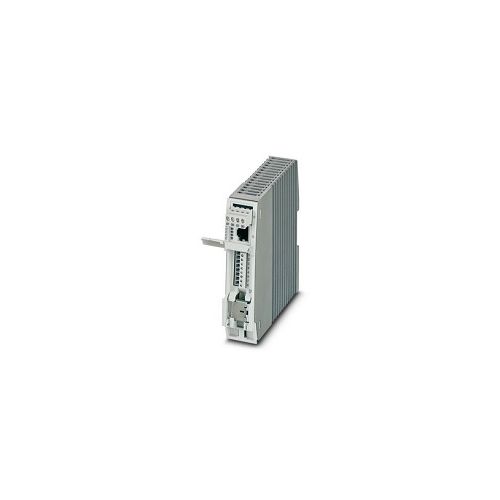

INJ 2111-T | 2703013 | PoE Injector
PoE injector, 60 W, RJ45 jack on screw terminal blocks, 10/100/1000 Mbps, DIN rail mounting, IP20, potential separation, shield contacting with strain relief
| Complete Electronics Part No. | 2703013 |
|---|---|
| Manufacturers Part No. | 2703013 |
| Ethernet Product Type: | POE Injector |
Description
PoE Injector - INJ 2111-T
- PoE injector, 60 W
- Supply Voltage Range: 18 V DC ... 57 V DC
- Nominal supply voltage: 24 V DC (SELV/PELV, restrictions for ATEX applications)
- Nominal Supply Voltage: 48 V DC
- Max Current Consumption: 4.2 A
- Reverse Polarity Protection
- Connection: RJ45 / Screw Connection
- Shield current monitoring
- Surge protection
- Serial Transmission Speed 10/100/1000 Mbps
- PSE/Midspan, compliant with IEEE 802.3af, at
- Frequency Range: 125 MHz
- Nominal Output Voltage: 54V DC (PoE)
- Output Power 60 W
- Conductor cross section AWG: 20 ... 12
- Width: 30.2 mm
- Height: 130 mm
- Depth: 120 mm
- Colour: Grey
- Housing Material: Plastic
- Ingress Protection: IP20
- DIN rail mounting
- ATEX Certified
- UL Listed
- Operating Temperature: -40°C ... 75°C
- Weight per Piece (excluding packing): 396.6 g
- Part Number 2703013
- Customs tariff number:85176200
- Country of origin: DE
