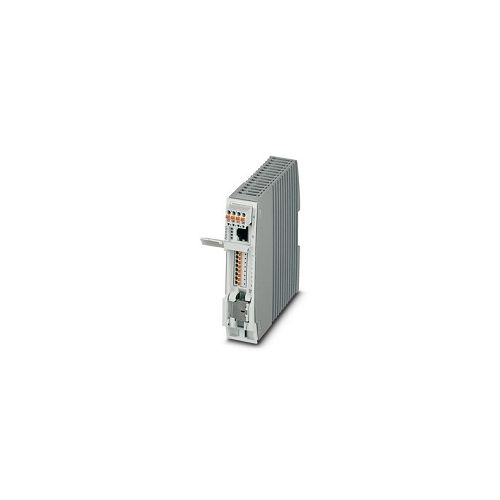

INJ 2113-T | 1004066 | PoE Injector
PoE injector, 60 W, RJ45 jack on Push-in terminal blocks, 10/100/1000 Mbps, DIN rail mounting, IP20, shield contacting with strain relief
| Complete Electronics Part No. | 1004066 |
|---|---|
| Manufacturers Part No. | 1004066 |
| Ethernet Product Type: | POE Injector |
Description
PoE Injector - INJ 2113-T
- Shield contacting with strain relief
- Shield current monitoring
- Surge protection
- Supply Voltage Range: 18 V DC ... 57 V DC
- Nominal Supply Voltage: 24 V DC / 48 V DC (SELV/PELV, restrictions for ATEX applications)
- Max Current Consumption: 4.2 A
- Connection: RJ45 x 2
- Serial Transmission Speed 10/100/1000 Mbps
- Conformance with EMC Directive 2014/30/EU
- Nominal Output Voltage: 54V DC (PoE)
- Output Power 60 W
- Width: 30.2 mm
- Height: 130 mm
- Depth: 120 mm
- Colour: Grey
- Housing Material: Plastic
- Ingress Protection: IP20
- DIN rail mounting
- UL Listed
- ATEX Approved
- Operating Temperature: -40°C ... 75°C, (observe derating)
- Weight per Piece (excluding packing): 324.72 g
- Part Number 1004066
- Customs tariff number:: 85176200
- Country of origin: DE
