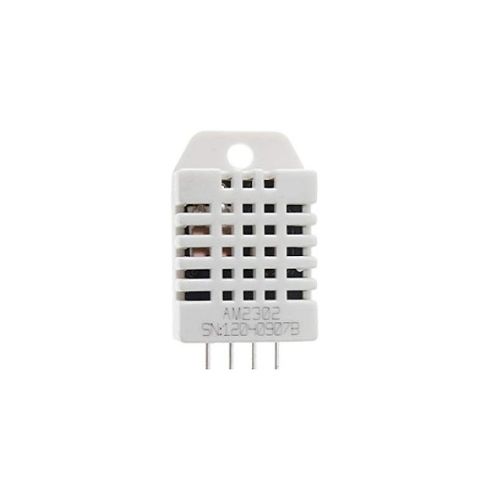

IS.STHDHT22-1 | Temperature and Humidity Sensor
3 to 5V power and I/O, 0-100% humidity readings with 2-5% accuracy, -40 to 80°C temperature readings ±0.5°C accuracy
| Complete Electronics Part No. | ISSTHDHT221 |
|---|---|
| Manufacturers Part No. | IS.STHDHT22-1 |
Description
Temperature and Humidity Sensor
- 3 to 5V power and I/O
- 2.5mA max current use during conversion (while requesting data)
- Good for 0-100% humidity readings with 2-5% accuracy
- Good for -40 to 80°C temperature readings ±0.5°C accuracy
- No more than 0.5 Hz sampling rate (once every 2 seconds)
- Body size 27mm x 59mm x 13.5mm (1.05" x 2.32" x 0.53")
- 3 wires 23cm long (9")
