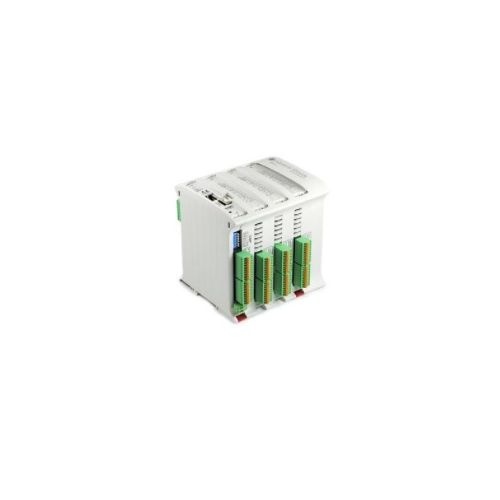

M-DUINO PLC Arduino Ethernet

• ETHERNET
• Analog/Digital PLUS
• Input Voltage: 12 to 24Vdc (Fuse protection (2.5A) Polarity protection)
• Flash Memory: 256KB of which 8KB used by bootloader
• SRAM: 8 KB
• EEPROM: 4 KB
• Arduino Board: Arduino Mega 2560

This PLC can be programmed using the Arduino IDE platform

 Inputs (Arduino Mega included)

• – 29 Inputs:

Total Digital Optoisolated Inputs (7-24Vdc): 15

Digital Optoisolated Inputs (7-24Vdc): 9

Digital Optoisolated Inputs (7-24Vdc) | can work like interrupt Inputs INT (7-24Vdc): 6

10 bit Analog Inputs (0-10V) | Digital (5-24Vdc) Inputs configurable by software): 14

Outputs (Arduino Mega included)

• – 25 Outputs:

(Digital Optoisolated Outputs (5-24Vdc): 9

Digital Optoisolated and PWM (5-24Vdc) | 8 bit Analog (0-10V) Outputs configurable by switch: 8

Relay Outputs (220Vac - 5A): 8

Communication

Ethernet communication - 1

Wi-Fi & BLE (Bluetooth Low Energy) - NO

GPRS/GSM - NO

USB port (type B) communication (for uploading or debugging only) - 1

Micro USB port (type B) communication (for uploading or debugging only) - 0

I2C communication (interface with other Industrial Shields, sensors, I/Os modules) - 1

Serial TTL (UART) communication - 2

RS-232 communication - 1

Half/Full Duplex RS-485 communication - 1

SPI external port communication (using MOSI, MISO, SS pins of Arduino) - 1

RTC (Real Time Clock. NOTE: I2C port used. See pinout modification) - YES

µSD Socket (using SPI port, chip select D53 pin) - YES

Communications notes - * When using I2C, 2 inputs are lost

The Open Source Board CPU

Arduino Mega Original Board (ATmega 2560)

Flash Memory (KB): 256

Flash Memory of which used by bootloader (KB): 8

SRAM (KB): 8

EEPROM (KB): 4

Clock Speed: 16MHz

Other Information

PLC measures: 101x119.5x119.3

DIN Rail mounting

Max. consum.: 1.2A

Power Supply Voltage (Vdc) Range: 12-24

Power Consumption (VAC max.): 30

Operating Temperture C: 0C-60C

Operating Temperature F: 32F-140F

Operating Relative Humidity % (no condensation): 10%-90%

Package Size: 13cm x 14cm x 13cm

Packaging: Box

ECCN Number: EAR99H

HTS Code: 8537.10.10.90

740.17 Language - 740.17 (b)(1) for self-classification or (b)(3) CCATS issued: §740.17 (b)(1)

Country of Origin: Spain

STATIC Sensitive: NO

Moisture Sensitivity Level (MSL): MSL 1 - Unlimited

Lead Free

RoHS Compliant by Exemption? NO

Does Part Contain Lithium? YES

Product Weight: 600 gram
