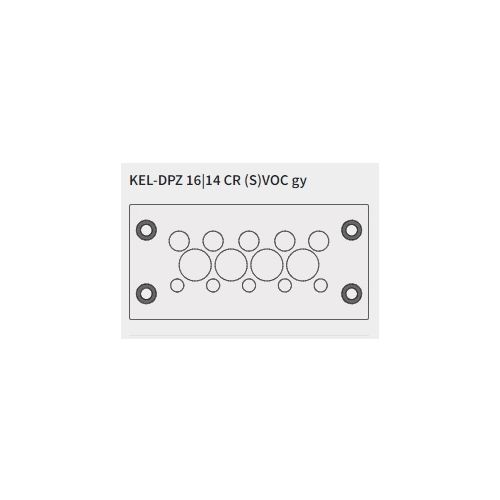

KEL-DPZ 16|14 CR gy | 43816.601 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables: 14, Clamping Range: 5 x 3.2 - 6.5mm, 5 x 5 - 10.2mm, 4 x 9 - 16.2mm, IP66
| Complete Electronics Part No. | 43816601 |
|---|---|
| Manufacturers Part No. | 43816.601 |
| Product Type: | KEL-DPZ 16 CR |
| Number of Cables: | max 14 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 14
Clamping range:
5 x 3.2 - 6.5mm
5 x 5 - 10.2mm
4 x 9 - 16.2mm
- Length: 120mm
- Width: 58mm
- Height: 14mm
- Mounting Height: 14mm
- For round cable
- Cut Out Size:86 x 36mm
- No of screw holes: 4
- Diameter of screws: 5.8mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Part Number 43816.601
- EAN:4251269327650
- Package Quantity: 5
