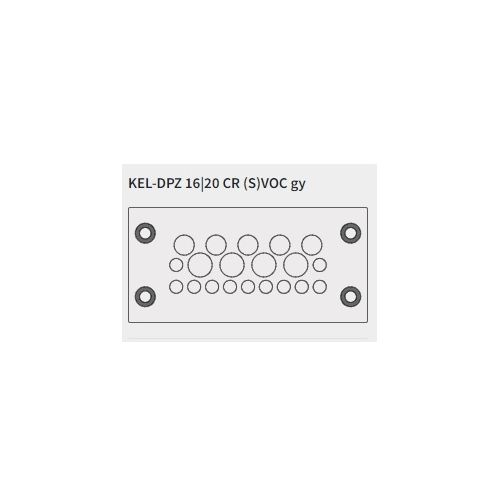

KEL-DPZ 16|20 CR (S)VOC gy | 43817.600 | Cable Entry Plates

KEL DPZ CR Multi Membrane cable entry plates, Number of cables: 20, Clamping Range: 11 x 3.2 - 6.5mm, 5 x 5 - 10.2mm, 4 x 7.5 - 12mm, IP66
More Information
Complete Electronics Part No 43817600
Manufacturers Part No. 43817.600
Product Type KEL-DPZ 16 CR
Number of Cables max 20
Description

KEL-DPZ CR multi-membrane cable entry plates

Available for cable diameters 1.5 - 22mm

  • Max number of cables: 20
Clamping range:
11 x 3.2 - 6.5mm
5 x 5 - 10.2mm
4 x 7.5 - 12mm
  • Length: 120mm
  • Width: 58mm
  • Height: 14mm
  • Mounting Height: 14mm
  • For round cable
  • Cut Out Size:86 x 36mm
  • No of screw holes: 4
  • Diameter of screws: 5.8mm
  • Materiat: Elastomer
  • Base Frame Polyamide
  • Base Frame Stainless Steel (V2A)
  • Colour: Grey (similar to RAL 7035)
  • Operating Temperature: -40°C to 100°C
  • Silicone free
  • Halogen free
  • IP54, IP55, IP64, IP65, IP66
  • Certified for particle emission for cleanroom class 1 according to ISO 14644-1
  • Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
  • Part Number 43817.600
  • EAN:4251269327568
  • Package Quantity: 5
