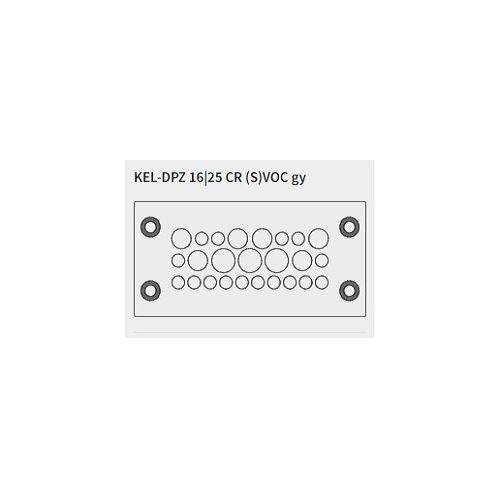

KEL-DPZ 16|25 CR (S)VOC gy | 43818.600 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables: 25, Clamping Range: 16 x 3.2 - 6.5mm, 6 x 5 - 10.2mm, 3 x 7.5 - 12mm, IP66
| Complete Electronics Part No. | 43818600 |
|---|---|
| Manufacturers Part No. | 43818.600 |
| Product Type: | KEL-DPZ 16 CR |
| Number of Cables: | max 25 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 25
Clamping range:
16 x 3.2 - 6.5mm
6 x 5 - 10.2mm
3 x 7.5 - 12mm
- Length: 120mm
- Width: 58mm
- Height: 14mm
- Mounting Height: 14mm
- For round cable
- Cut Out Size:86 x 36mm
- No of screw holes: 4
- Diameter of screws: 5.8mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Part Number 43818.601
- EAN: 4251269327575
- Package Quantity: 5
