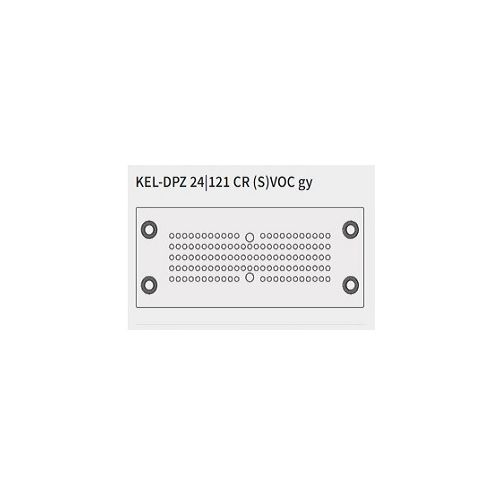

KEL-DPZ 24|121 CR (S)VOC gy | 43735.600 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables: 121, Clamping Range: 119 x 1.5 - 2.6mm + 2 x 2.5 - 5mm
| Complete Electronics Part No. | 43735600 |
|---|---|
| Manufacturers Part No. | 43735.600 |
| Product Type: | KEL-DPZ 24 CR |
| Number of Cables: | max 121 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 3.2 - 22.2mm
- Max number of cables: 121
Clamping range:
119 x 1.5 - 2.6mm
2 x 2.5 - 5mm
- Length: 147mm
- Width: 58mm
- Height: 14mm
- Mounting Height: 14mm
- For round cable
- Cut Out Size:112 x 36mm
- No of screw holes: 4
- Diameter of screws: 5.9mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Part Number 43735.600
- EAN:4251269327216
- Package Quantity: 5
