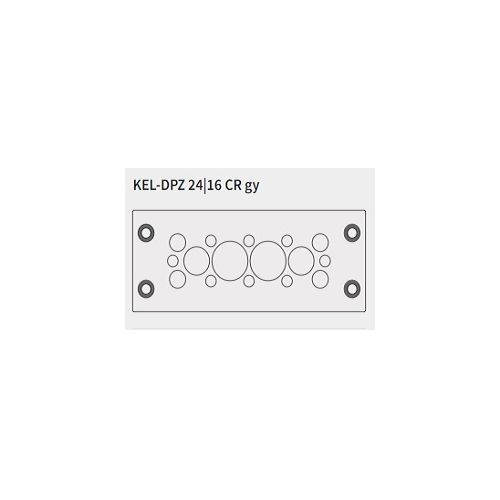

KEL-DPZ 24|16 CR gy | 43725.601 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables: 16, Clamping Range: 8 x 3.2-6.5mm + 4 x 5-9.7mm + 2 x 9-16.2mm + 2 x 16-22mm IP66
| Complete Electronics Part No. | 43725601 |
|---|---|
| Manufacturers Part No. | 43725.601 |
| Product Type: | KEL-DPZ 24 CR |
| Number of Cables: | max 16 |
Description
KEL-DPZ CR multi-membrane cable entry plate
Available for cable diameters 3.2 - 22.2mm
- Max number of cables: 16
Clamping range:
8 x 3.2 - 6.5mm
4 x 5 - 9.7mm
2 x 9 - 16.2mm
2 x 16 - 22mm
- Length: 147mm
- Width: 58mm
- Height: 14mm
- Mounting Height: 14mm
- For round cable
- Cut Out Size:112 x 36mm
- No of screw holes: 4
- Diameter of screws: 5.9mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Part Number 43725.601
- EAN: 4251269327377
- Package Quantity: 5
