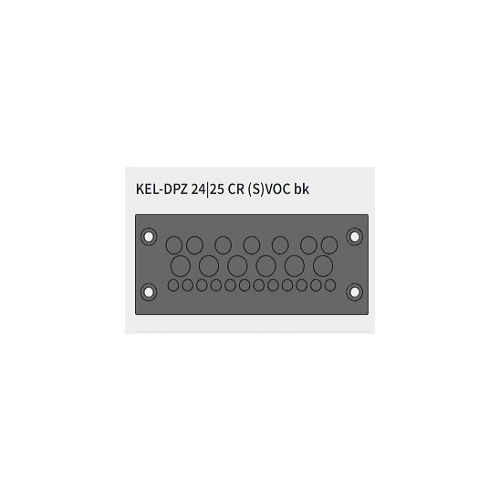

KEL-DPZ 24|25 CR (S)VOC bk | 50710.600 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables: 25, Clamping Range: 12 x 3.2-6.5mm + 7 x 4.8.- 9.7mm + 6 x 7.5- 12mm, IP66
| Complete Electronics Part No. | 50710600 |
|---|---|
| Manufacturers Part No. | 50710.600 |
| Product Type: | KEL-DPZ 24 CR |
| Number of Cables: | max 25 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 3.2 - 22.2mm
- Max number of cables: 25
Clamping range:
12 x 3.2 - 6.5mm
7 x 4.8 - 9.7mm
6 x 7.5 - 12mm
- Length: 147mm
- Width: 58mm
- Height: 14mm
- Mounting Height: 14mm
- For round cable
- Cut Out Size:112 x 36mm
- No of screw holes: 4
- Diameter of screws: 5.9mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Black (RAL 9001)
- Operating Temperature: -40°C to 100°C
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Certified for outgassing according to VOC/SVOC (ISO 14644-8; ISO 16000-6,-9,-11,-25, VDI 2083 sheet 17)
- Part Number 50710.600
- EAN:4251269327247
- Package Quantity: 5
