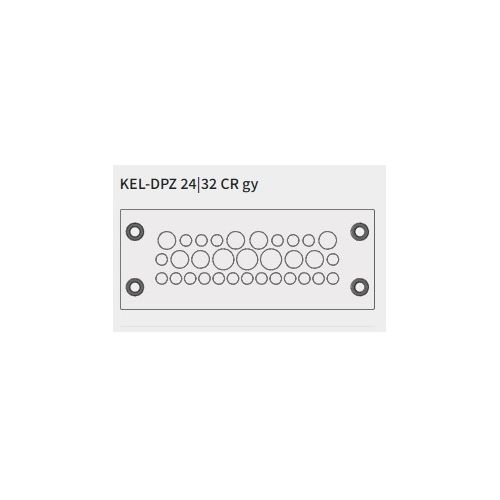

KEL-DPZ 24|32 CR gy | 43730.601 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables: 32, Clamping Range: 21 x 3.2 -6.5mm,+ 8 x 5 -10.2mm + 3 x 7.5 - 12mm IP66
| Complete Electronics Part No. | 43730601 |
|---|---|
| Manufacturers Part No. | 43730.601 |
| Product Type: | KEL-DPZ 24 CR |
| Number of Cables: | max 32 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 3.2 - 22.2mm
- Max number of cables: 32
Clamping range::
21 x 3.2 - 6.5mm
8 x 5 - 10.2mm
3 x 7.5 - 12mm
- Length: 147mm
- Width: 58mm
- Height: 14mm
- Mounting Height: 14mm
- For round cable
- Cut Out Size:112 x 36mm
- No of screw holes: 4
- Diameter of screws: 5.9mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Part Number 43730.601
- EAN:4251269327384
- Package Quantity: 5
