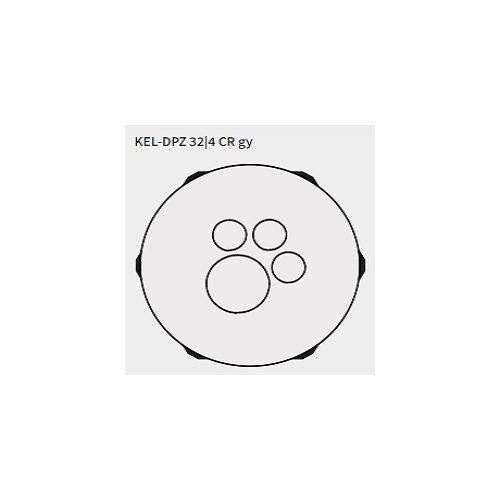

KEL-DPZ 32|4 CR gy | 43732.601 | Cable Entry Plates
KEL DPZ CR round cable entry plates, Number of cables: 4, Clamping Range: 3 x 3.2 - 6.5mm +1 x 7.2 - 12.5mm, 40°C to 100°C, IP66/IP68
| Complete Electronics Part No. | 43732601 |
|---|---|
| Manufacturers Part No. | 43732.601 |
| Product Type: | KEL-DPZ 32 CR |
| Number of Cables: | max 4 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 4
- Clamping range: 3 x 3.2 - 6.5mm +1 x 7.2 - 12.5mm
- Height: 22mm
- External Diameter: 44mm
- Mounting Height: 8mm
- For round cable
- Cut Out Size: 32.3mm
- Cut Out Size (metric): M32
- Thread: M32 x 1.5
- Thread Length: 14mm
- Materiat: Elastomer
- Base Frame: Polyamide
- Colour: grey (similar RAL 7035)
- Flame Class: UL94 VO Self Extinguishing
- Operating Temperature: -40 C° to 100 C°
- Silicone free
- Halogen free
- IP66/IP68
- UL Type 12, UL Type 4X
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Hexagonal locknut included in the delivery
- Hygienic design - free of dirt-collecting recesses
- Part Number 43732.601
- EAN: 4251269328237
- Package Quantity: 5
