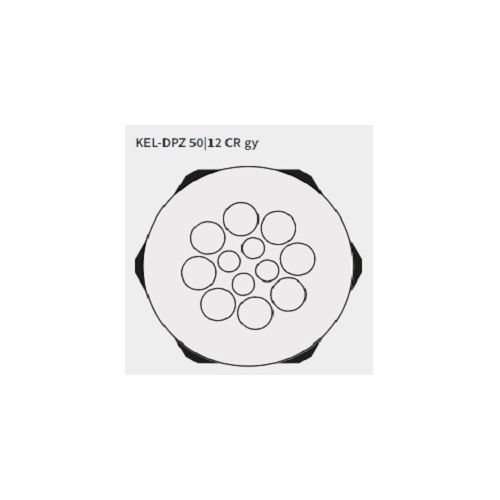

KEL-DPZ 50|12 CR gy | 43752.601 | Cable Entry Plates
KEL DPZ CR round cable entry plates, Number of cables: 12, Clamping Range: 4 x 3.2 - 6.5mm + 8 x 5 - 10.2mm, 40°C to 100°C, IP66/IP68
| Complete Electronics Part No. | 43752601 |
|---|---|
| Manufacturers Part No. | 43752.601 |
| Product Type: | KEL-DPZ 50 CR |
| Number of Cables: | max 12 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 12
- Clamping range: 8 x 3.2 - 6.5mm + 4 x 5 - 10.2mm
- Height: 22mm
- External Diameter: 62mm
- Mounting Height: 8mm
- For round cable
- Cut Out Size: 50.4mm
- Cut Out Size (metric): M50
- Thread: M50 x 1.5
- Thread Length: 14mm
- Materiat: Elastomer
- Base Frame: Polyamide
- Colour: Grey (Similar to RAL 7035)
- Flame Class: UL94 VO Self Extinguishing
- Operating Temperature: -40 C° to 100 C°
- Silicone free
- Halogen free
- IP66/IP68
- UL Type 12, UL Type 4X
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Hexagonal locknut included in the delivery
- Hygienic design - free of dirt-collecting recesses
- Part Number 43752.601
- EAN: 4251269328312
- Package Quantity: 5
