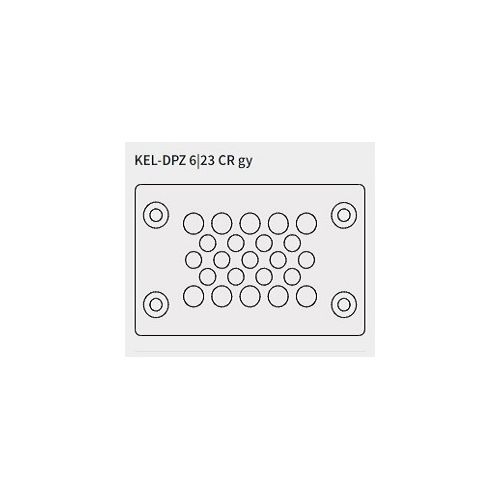

KEL-DPZ 6|23 CR gy | 43813.601 | Cable Entry Plates
KEL DPZ CR Multi Membrane cable entry plates, Number of cables:23, Clamping Range: 10 x 3.2 - 6.5mm + 13 x 2.5 - 5mm
| Complete Electronics Part No. | 43813601 |
|---|---|
| Manufacturers Part No. | 43813.601 |
| Product Type: | KEL-DPZ 6 CR |
| Number of Cables: | max 23 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 23
- Clamping range:10 x 3.2 - 6.5mm + 13 x 2.5 - 5mm
- Length: 85.5mm
- Width: 54mm
- Height: 7.5mm
- Mounting Height: 7.5mm
- For round cable
- Cut Out Size:52 x 36mm
- No of screw holes: 4
- Diameter of screw holes: 4.5mm
- Materiat: Elastomer
- Base Frame Polyamide
- Base Frame Stainless Steel (V2A)
- Colour: Grey (similar to RAL 7035)
- Operating Temperature: -40°C to 100°C
- Flame Class: UL94-V0, self-extinguishing
- Silicone free
- Halogen free
- IP54, IP55, IP64, IP65, IP66
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Part Number 43813.601
- EAN: 4251269327629
- Package Quantity: 5
