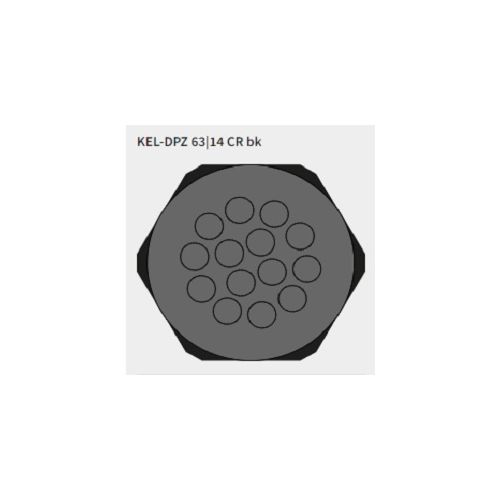

KEL-DPZ 63|14 CR bk | 50762.601 | Cable Entry Plates
KEL DPZ CR round cable entry plates, Number of cables: 14, Clamping Range: 14 x 5 - 10.2mm, IP66/IP68
| Complete Electronics Part No. | 50762601 |
|---|---|
| Manufacturers Part No. | 50762.601 |
| Product Type: | KEL-DPZ 63 CR |
| Number of Cables: | max 14 |
Description
KEL-DPZ CR multi-membrane cable entry plates
Available for cable diameters 1.5 - 22mm
- Max number of cables: 14
- Clamping range: 14 x 5 - 10.2mm
- Height: 22mm
- External Diameter: 75mm
- Mounting Height: 8mm
- For round cable
- Cut Out Size: 63.4mm
- Cut Out Size (metric): M63
- Thread: M63 x 1.5
- Thread Length: 14mm
- Materiat: Elastomer
- Base Frame: Polyamide
- Colour: Black (RAL 9001)
- Flame Class: UL94 VO Self Extinguishing
- Operating Temperature: -40°C to 100°C
- Silicone free
- Halogen free
- IP66/IP68
- UL Type 12, UL Type 4X
- Certified for particle emission for cleanroom class 1 according to ISO 14644-1
- Hexagonal locknut included in the delivery
- Hygienic design - free of dirt-collecting recesses
- Part Number 50762.601
- EAN: 4251269328510
- Package Quantity: 5
